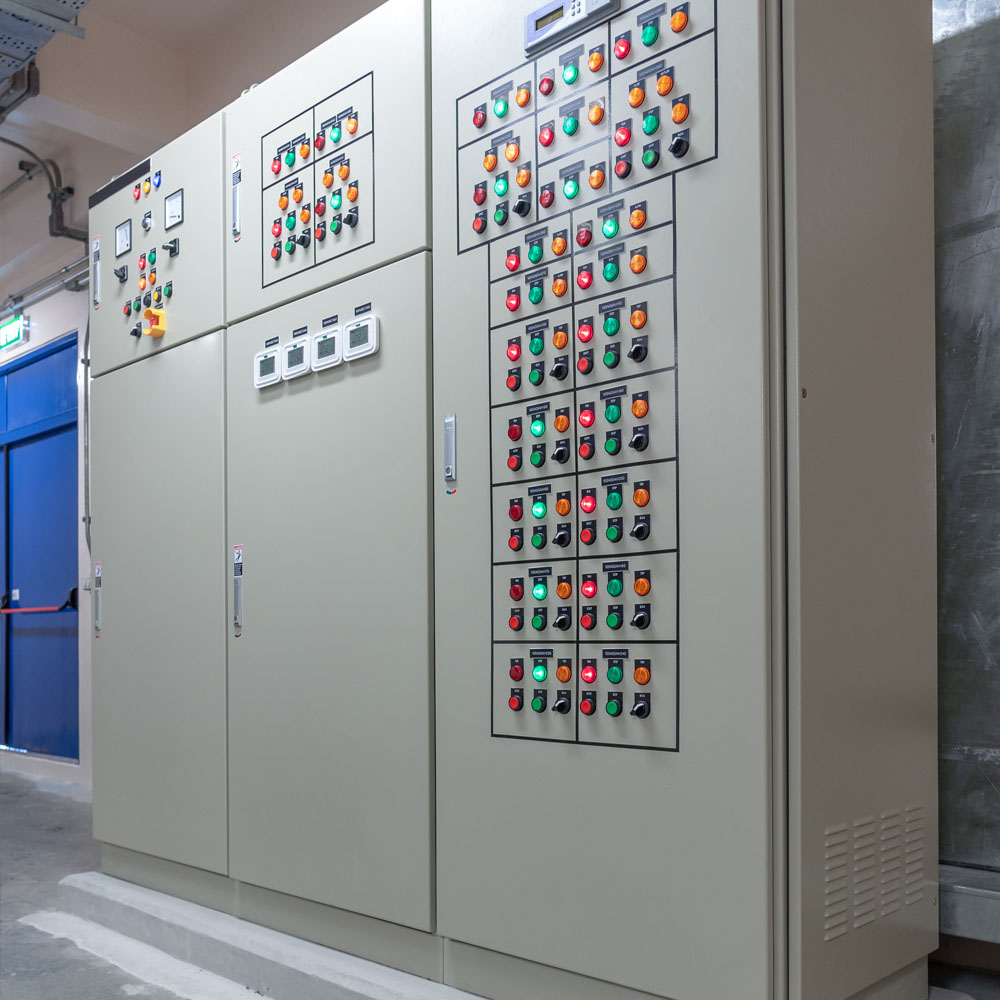

Control & Relay Panel
11kV / 22kV / 33kV / 66kV / 132kV
Features:
- The Panel is built up of 6 separate sheets which consist of front panel, two side panels, door frame & roof providing rigidity and strength.
- The enclosure is constructed by using CRC sheet and is equipped with interior lamp, anti – condensation heater etc.
- It is suitable for floor mounting and bottom entry of auxiliary power and multi core cable. If needed top cable entry panels can be designed
- Suitable earthing is provided.
- Ref. Standard : IEC 439-1/IS 8623
- Rated Power frequency with-stand voltage : 2.5 kV (RMS) at 50 Hz
- Degree of Protection : IP54
- Paint Colour Shade : Light Grey Shade RAL 7032 (Other colours on request)
- Cable Entry : Bottom
- Access : Front / Rear
